Windows Installation

This page contains installation instructions for Windows.

Prerequisites Checklist​

Before starting the installation, confirm all of the following are in place:

  • Windows Server 2019, 2022, or 2025 (64-bit) — or Windows 10/11 for local development. This guide does not cover 32-bit environments. See Windows Server 2025 notes for what differs on 2025.
  • IIS 10+ with CGI feature enabled — the CGI role is required for PHP FastCGI. Enable it with:
    Enable-WindowsOptionalFeature -Online -FeatureName IIS-CGI
  • PHP 8.3 or later — use the Non-Thread-Safe (NTS) build for IIS/FastCGI deployments. Download from windows.php.net.
  • Composer — PHP dependency manager. Download the installer from getcomposer.org.
  • Git for Windows — required to clone the DreamFactory repository. Download from git-scm.com.
  • Visual C++ 2015–2022 Redistributable (x64) — required by PHP and its extensions on Windows. Download from Microsoft. PHP 8.3 builds are compiled with Visual Studio 2019 (vs16) and PHP 8.4 with Visual Studio 2022 (vs17); both need this same 2015–2022 runtime.
  • URL Rewrite Module for IIS — required for Laravel's routing. Download from Microsoft.
  • Supported system database — for the DreamFactory system database, use SQLite (default, easiest), MySQL 8.0+, PostgreSQL 13+, or SQL Server. SQLite requires no additional setup and is recommended for initial installation.
  • Local Administrator account — IIS needs elevated permissions for directory access and FastCGI configuration.
  • DreamFactory license key — required for Enterprise edition. Contact DreamFactory support if you do not have one.

The server must not have any other IIS/web applications running on it in order to work with DreamFactory. You must be able to access the GUI of the server using something like RDP, have the ability to transfer files from your client machine to the server, and it is recommended to turn IE enhanced security off to make downloading some of the necessary installation files easier. Other applications might be able to run on the same IIS instance as DreamFactory, however this is not typically supported.

A local Administrator account is also required at minimum for testing permissions, and possibly in perpetuity for IIS permissions.

Windows Server 2025 notes​

The procedure on this page was verified on Windows Server 2025 (build 26100) with DreamFactory 7.7.1 and PHP 8.3.36 in November 2026: the scripted install, the site running as a local Administrator account and as the application pool identity, the SQL Server and Oracle driver steps including a SQL Server connection through the installed drivers, and PHP Manager 2.12. The steps are the same as for 2022; the differences are in the environment around them:

  • Internet Explorer is gone, but IE Enhanced Security Configuration is still there. The Server Manager toggle (and the registry keys under HKLM\SOFTWARE\Microsoft\Active Setup\Installed Components) still exist and still block downloads in Edge until turned off.
  • winget is preinstalled, so Git, the VC++ runtime, and other tools can be installed from an elevated prompt without a browser. Note that winget does not work when run as SYSTEM (for example from a cloud-provider run-command agent); use the direct installer links in this guide for unattended installs.
  • OpenSSH Server is built in (service sshd, off by default). It is a convenient alternative to RDP for copying the composer files and running the command-line steps.
  • Cloud images: on AWS the Windows_Server-2025-*-Full-Base AMIs ship the SSM Agent, so every step below can be run through Systems Manager Run Command with no inbound ports. SSM Agent builds before 3.3.1311.0 (November 2024) depended on wmic.exe, which Server 2025 no longer installs by default; current AMIs ship a fixed agent.
  • Resource sizing: composer install for a commercial composer set took about 15 minutes on a 2 vCPU / 2 GB instance. Give the server at least 4 GB and 10 GB of free disk for a comfortable install.

Server role setup​

To start, set up the IIS Web server roles.

To enable the Web Server Roles:

  1. Open the Server Manager Application.
  2. Click on Option 2 Add roles and features.
  3. Click Next.
  4. Ensure that Role based or feature based is selected, and click Next.
  5. Ensure the server you're working on is selected, click Next.
  6. On server roles, check the Web Server (IIS) box, install any admin tools if asked, and click Next.
  7. Your Web Server Role should look something like this (also outlined below): Windows Server Manager showing IIS Web Server role selection dialog
  8. Click Next and then select Install. Let the installer run in the background, reup on coffee and start the download section below.

Web server roles​

These are the web server roles DreamFactory recommends selecting:

  • Web Server (IIS)
    • Common HTTP Features
      • Default Document
      • Directory Browsing
      • HTTP Errors
      • Static Content
      • HTTP Redirection
    • Health and Diagnostics
      • HTTP Logging
    • Performance
      • Static Content Compression
    • Security
      • Request Filtering
    • Application Development
      • CGI

Downloads​

There are a few installation files to download and, in some cases, installed. This section covers the downloads needed before starting the actual installation and configuration of the server. Getting all of these files on the server ahead of time ensures that the rest of the installation runs smoothly.

DreamFactory specific files​

Before starting, locate the following files on the server so they are ready to add to the installation when needed.

  • Composer (license) files:
    • composer.json
    • composer.json-dist
    • composer.lock
  • DreamFactory license key
note

The composer files are typically grabbed from the DreamFactory SFTP server. Contact DreamFactory support if you need help accessing them.

Git​

The git command must be available to get the DreamFactory code later in the installation process.

Git can be downloaded from here. Select the 64-bit Git for Windows Setup version.

To install git, simply run the installer you downloaded and click yes/next on all default options.

Visual C++ 2015-2022​

Download here

Simply run the installer to install. If it reports that a newer version is already present, that is fine.

URL rewrite module​

Download here

Simply run the installer to install.

PHP​

PHP for Windows can be downloaded here. Be sure to get a 64-bit, non-thread-safe (NTS) version. Download the .zip file.

Use PHP 8.3.36 or a later 8.3 release. Earlier builds have the critical vulnerabilities described in the PHP security advisory. Download the file named like php-8.3.36-1-nts-Win32-vs16-x64.zip (the -1 is a rebuild number that newer Windows builds carry). Older releases are listed at downloads.php.net/~windows/releases.

Just get the .zip downloaded. It is installed later in the process.

Composer​

Composer is a package manager for PHP. The installer can be directly downloaded here.

Just get the installer downloaded. It is run later in the process.

PHP Manager​

PHP Manager is an IIS utility to make managing PHP and extensions much easier. It is optional: every step below that uses it also lists the equivalent IIS Manager or appcmd action.

Download PHPManagerForIIS_x64.msi from the PHP Manager 2 releases page on GitHub. The current release is 2.12 (March 2023).

warning

Do not use the older PHP Manager 1.5.0 for IIS 10 listing on iis.net. Its Download this extension button no longer links to a file, so clicking it does nothing. The GitHub release above is the maintained successor and installs on IIS 10 on Windows Server 2019, 2022 and 2025.

PHP Manager 2.12 predates PHP 8.3. Verified on Windows Server 2025 with PHP 8.3.36: the MSI installs, registers the PHP provider in IIS Manager, and recognizes a PHP 8.3 FastCGI handler that was registered by hand, both in the UI and through its PowerShell snap-in (Add-PSSnapin PHPManagerSnapin; Get-PHPVersion). Installing it does not change php.ini. Users report that its diagnostics flag 8.3 as obsolete, so treat View Recommendations as suggestions: the php.ini block on this page already contains the settings it would apply. It needs the IIS Management Console feature (Web-Mgmt-Console), which the role wizard installs when you accept the management tools.

Simply run the downloaded installer while IIS is closed to complete the install.

SQL Server drivers​

If you plan to use DreamFactory to connect to a SQL Server, you must have the driver packages.

Start with downloading the v17 and v18 drivers:

Run both downloaded installers.

For the drivers to be used, you also need the sqlsrv PHP extensions. Start by going to the releases page here.

Find the latest release and look in the assets section. Windows packages are at the end of the list. Download the Windows_<version>RTW.zip package; it contains the DLLs for every PHP version the release supports.

As of this writing (November 2026) the latest release is 5.13.3, which can be directly downloaded here. It ships DLLs for PHP 8.3 and 8.4.

Getting DreamFactory running​

The rest of the procedure involves two primary objectives: getting DreamFactory installed and running with the PHP development server, and then configuring IIS to serve DreamFactory. This section cover the installation and PHP development server set up.

Installing PHP​

  1. Create a new folder: C:\php\, grab the PHP installation .zip you gathered earlier, and extract the entire contents to the C:\php\ folder.

  2. Duplicate (copy/paste) the php.ini-development file, and rename the duplicate php.ini.

note

You might need to enable file name extentions in the View tab of the file explorer.

  1. Open the newly created php.ini and copy/paste the following at the bottom of the file:
; Where PHP looks for extension DLLs. PHP's compiled-in default on Windows is C:\php\ext,
; so set this explicitly if PHP lives anywhere else.
extension_dir="C:\php\ext"

; Extensions required by DreamFactory
extension=ldap
extension=curl
extension=ffi
extension=ftp
extension=fileinfo
extension=gd
extension=intl
extension=mbstring
extension=exif
extension=mysqli
extension=odbc
extension=openssl
extension=pdo_mysql
extension=pdo_odbc
extension=pdo_pgsql
extension=pdo_sqlite
extension=pgsql
extension=shmop
extension=soap
extension=sockets
extension=sodium
extension=sqlite3
extension=tidy
extension=xsl
extension=zip

; OPcache — required for acceptable performance
zend_extension=opcache
opcache.enable=1
opcache.memory_consumption=256
opcache.interned_strings_buffer=16
opcache.max_accelerated_files=20000
opcache.revalidate_freq=0
opcache.validate_timestamps=1
opcache.enable_cli=0

; IIS FastCGI. php.ini-development says of cgi.force_redirect: "You CAN safely turn this off for IIS, in fact, you MUST."
cgi.force_redirect=0
cgi.fix_pathinfo=1
fastcgi.impersonate=1
fastcgi.logging=0

; Error logging (create the C:\php\logs folder)
log_errors=On
error_log="C:\php\logs\php_errors.log"

; DreamFactory recommended PHP settings
memory_limit=256M
max_execution_time=300
max_input_time=300
post_max_size=100M
upload_max_filesize=100M
display_errors=Off
display_startup_errors=Off
expose_php=Off
date.timezone=UTC
  1. Save and close php.ini, then create the folder C:\php\logs so PHP can write its error log there.
warning

Keep extension_dir in step with where you extracted PHP. If it points at a folder that does not exist, every extension= line fails, and because the block above turns display_startup_errors off, the only evidence is a run of "Unable to load dynamic library" warnings in php_errors.log. php -m will list only the built-in modules.

note

The memory_limit of 256M is a minimum. If you're running complex joins, large result sets, or heavy scripting workloads, increase to 512M.

warning

Do not skip the OPcache tuning block. Running OPcache with default settings on a DreamFactory installation will result in degraded performance — DreamFactory's codebase exceeds the default max_accelerated_files limit of 10,000 files.

note

You can manually add PHP to your enviornment variable path, however this is done automatically during the Composer installation.

Installing Composer​

To start, run the composer installer you downloaded earlier.

You can select Next through most of the installation. When asked to browse to your command line/CLI PHP, navigate to: C:\php\php.exe. Then check the Add to path option. Click Next and wait.

info

This is a great time to test both the PHP and Composer installations, open a new commmand prompt and run:

php -v

composer --version

If both of those commands are successful, you are safe to keep moving forward.

Installing SQL Server drivers (optional)​

This is an optional step dependent on if you intend to use DreamFactory with SQL Server. The unattended installer script performs it by default, installing ODBC Driver 17 and 18 and both extensions; pass -SkipSqlServer to leave them out.

The v17 and v18 drivers should have been installed during the previous steps, if not, install them now.

Open the Windows_5.13.3RTW.zip downloaded earlier. Its Windows folder contains one DLL per PHP version, thread model, and architecture. Copy the two 64-bit NTS (Non Thread Safe) files for your PHP version, php_sqlsrv_83_nts_x64.dll and php_pdo_sqlsrv_83_nts_x64.dll, into your PHP ext folder (C:\php\ext\).

Then rename both files, removing the _83_nts_x64 suffix, so they are named:

  • php_pdo_sqlsrv.dll
  • php_sqlsrv.dll

Finally, add the two extensions to the end of php.ini. They are deliberately not in the main extension block above, because PHP logs a startup warning on every request if they are listed but the DLLs are missing:

extension=php_sqlsrv.dll
extension=php_pdo_sqlsrv.dll

Get (git) DreamFactory code​

Next, get the DreamFactory code by opening a command prompt, and running:

cd C:\inetpub\wwwroot\

git clone https://github.com/dreamfactorysoftware/dreamfactory

This creates a C:\inetpub\wwwroot\dreamfactory folder on the server, refered to as the DreamFactory installation folder in this and other documentation.

Install DreamFactory dependencies​

DreamFactory uses Composer to handle all PHP dependencies, if you haven't installed Composer from the installation section above, do so now.

First, take your 3 composer/license files (composer.json, composer.json-dist, composer.lock) and add them to the DreamFactory installation directory, overwriting the existing composer files in that directory. Then, open a command prompt, cd into the dreamfactory installation directory and run:

composer install --no-dev --ignore-platform-reqs --verbose

Sometimes this command takes a while to run, if it feels hung, hit enter a couple times in the command prompt.

Build DreamFactory system database and root admin​

Once the composer install finishes, we can finalize the DreamFactory setup. In your command prompt, cd into the dreamfactory installation directory. Start by running: php artisan df:env --df_install=Windows.

This command defines the system database for the DreamFactory environment. For initial installation, it is recommended to start with option [0], Sqlite. If you run into problems during the installation, starting with sqlite eliminates database/networking issues from the troubleshooting process. This database can be changed at a later date, and any configurations you build in sqlite can be exported and imported into another instance later.

When selecting a database name and user, it is recommended to stick with the default "dreamfactory" and "dfadmin" respectively.

Once the df:env command finishes, run: php artisan df:setup This command prompts you to create your first admin user. This email and password are used to log in to the UI later. The root admin account details can be changed later.

Scripted installs must pass the admin phone number

df:setup accepts all of the admin details as options, which is how unattended installs run it:

php artisan df:setup --admin_first_name=First --admin_last_name=Last [email protected] --admin_password=AtLeast16Characters --admin_phone=000-000-0000 --no-interaction

The phone number is required. If --admin_phone is left out, the command prints The phone field is required. but still exits with code 0 and no admin user is created, so a script cannot tell that it failed. Check the output, or confirm the user table has a row, before moving on.

Finally, add your license key to the end of the .env file located in the dreamfactory installation directory. You can add it to the bottom of the file like: DF_LICENSE_KEY={YOUR LICENSE KEY}

note

Ensure that you remove the curly brackets seen in the example above.

Production .env settings​

Before going live, set the following values in your .env file. The .env written by df:env sets APP_ENV=local and leaves APP_DEBUG and APP_LOG_LEVEL unset, which is fine for initial setup and testing but should be made explicit for any production or customer-facing deployment:

APP_ENV=production
APP_DEBUG=false
APP_LOG_LEVEL=warning
SettingAfter df:envProduction ValueWhy
APP_ENVlocalproductionEnables Laravel production optimizations
APP_DEBUGnot set (Laravel treats it as false)falsePrevents stack traces from appearing in API error responses
APP_LOG_LEVELnot set (defaults to warning)warningPrevents logs from flooding with routine request/response info
danger

Setting APP_DEBUG=true in production means every PHP exception will return a full stack trace — including file paths, SQL queries, and environment details — to anyone calling your API. Change this before pointing any external traffic at the server.

Test DreamFactory​

In order to run a test/development Laravel server, from the dreamfactory installation directory run: php artisan serve

This starts a web server at http://127.0.0.1:8000. If you can navigate to this url, login to the UI with the root admin created earlier. If you don't have a red banner at the top of the UI, you have done everything correctly. If the red banner is still visible, go back and check for any steps you may have missed before moving forward.

From here, DreamFactory is installed, the next section focuses on getting IIS to serve DreamFactory on port 80.

Serving DreamFactory with IIS​

This section highlights the IIS configuration needed to serve DreamFactory.

note

We at DreamFactory are not Windows experts. The guidance provided here outlines a basic, default IIS configuration that has been tested and is known to work with DreamFactory on Windows environments. This setup is intended as a foundation for your DreamFactory installation. It's important to understand that while this configuration works for us and is supported by our team, Windows and IIS are versatile platforms. As such, there may be alternative configurations that also work well, depending on your specific needs and environment. We encourage you to use this as a guide, but feel free to explore and implement what works best for your situation.

To begin, open the IIS manager, most of the steps here take place in the IIS manager.

Create DreamFactory site​

In the left panel of the IIS manager UI, open sites, right click, and select remove the default site.

Next, right click on the sites folder and select Add Website. Then fill in the dialog:

  • Site name: typically set to "dreamfactory" but can be whatever you'd like
  • Physical Path: {dreamfactory install dir}/public if you've been following along this should be: C:\inetpub\wwwroot\dreamfactory\public\
  • Application pool: use a dedicated pool with .NET CLR version set to No Managed Code
  • Connect as...
    • For the default DreamFactory configuration, the "Connect As" should be set to a local server Administrator account set under the Specific User option. With fastcgi.impersonate=1 (set in the php.ini block above) PHP then runs as that account, which is why no folder permissions need to be granted for this path. Other options such as domain users can be used, however you might run into permission issues that will need to be solved. DreamFactory support is able to support the local Administrator account, but is unable to help with setting domain/non-local admin account permissions.
    • Use the "Test Settings" button, and ensure you have two green check marks.
note

Due to the vast diversity in Windows environments, initial testing of DreamFactory necessitates the use of the local Administrator account. If DreamFactory is accessible with the local Administrator account but encounters issues with domain or non-admin user accounts, the problem often stems from permissions issues. We strongly recommend and support the use of the local Administrator account. Troubleshooting permission issues is often required for non-admin accounts to resolve access discrepancies.

Alternative: run the site as the application pool identity

If you cannot store an Administrator password in IIS (unattended installs, hardened servers), the site can run under its application pool identity instead. Both identities were verified on Windows Server 2025:

  1. Leave Connect as on Application user (pass-through authentication).
  2. In the site's Authentication feature, edit Anonymous Authentication and choose Application pool identity. By default IIS uses the IUSR account for anonymous requests, and IUSR is not a member of IIS_IUSRS, so PHP fails with file_put_contents(...storage\framework/cache/...) errors until this is changed.
  3. Grant IIS_IUSRS Full control on the folders listed under Directory permissions, including database.

Handler mappings​

Handler mappings tell IIS how/where to use the php executables in serving DreamFactory. Select the server on the left side of the IIS manager and click on the Handler Mappings icon. To create a new mapping, on the right side of the page, click Add Module Mapping.

Fill in the Add Module Mapping dialog:

  • Request Path: *.php
  • Module: FastCgiModule
  • Executable: C:\php\php-cgi.exe
  • Name: PHP_via_FastCGI

Next, click on request restricions, and ensure the following are set:

  • Mapping: file or folder
  • Verbs: all
  • Access: script

Click OK to save the handler mapping.

PHP manager config​

If you skipped PHP Manager, you can skip this section too: the php.ini block earlier on this page already contains the settings that its recommendations apply (cgi.force_redirect=0, cgi.fix_pathinfo=1, fastcgi.impersonate=1, fastcgi.logging=0, date.timezone, and an error_log path). Confirm PHP works by browsing to a phpinfo() file in the site's public folder instead.

Again, from the server view on the left, click on the PHP Manager icon.

Generally a yellow notice that your PHP configuration is non optimal is displayed. Click on View Recommendations, check the boxes and apply every available recommendation.

Test that PHP is working, click the Check phpinfo() link and then test using the DreamFactory site. Ensure that you see a purple and white PHP info output in this screen. If not, go back and resolve any PHP installation issues.

If your php.ini is built correctly you should be able to access Enable or disable an extension and see them enabled. You can also enable extensions manually in the PHP Manager which applies the appropriate edits to the php.ini file.

FastCGI settings​

There are a few setting changes to make to the default FastCGI configuration.

From the server view, select FastCGI Settings, then select the handler you made earlier and click Edit....

Make the following changes:

SettingValueWhy
Standard Error ModeIgnoreAndReturn200Prevents PHP stderr from generating IIS 500 errors
Activity Timeout120Gives PHP scripts enough time to complete
Request Timeout300Must be ≥ max_execution_time in php.ini
Max Instances20Allows concurrent requests; increase for high-traffic installs

Click OK to save.

warning

The Standard Error Mode change is required. Leaving it at the default ReturnStdErrIn500 will cause DreamFactory to return 500 errors for normal PHP warnings and notices.

Application Pool tuning​

From the IIS Manager left panel, click Application Pools, select the DreamFactory pool, and click Advanced Settings on the right.

Make the following changes:

SettingValueWhy
Start ModeAlwaysRunningEliminates cold-start latency after app pool recycles
Idle Time-out (minutes)0Prevents IIS from suspending the pool between requests

Click OK to save, then recycle the app pool.

Default document​

Select the DreamFactory site, open Default Document, click Add..., enter index.php, and move it to the top of the list. Without this, requesting the site root (http://localhost/) returns HTTP 403.14 because the web.config that ships with DreamFactory contains the rewrite rules but does not declare a default document.

Request filtering​

From the server view, select the Request Filtering icon. Then Navigate to the HTTP Verbs tab. On the right side, click Allow Verb and add the following verbs one at a time:

  • GET
  • HEAD
  • POST
  • DELETE
  • PUT
  • PATCH

This step is required: the web.config in the DreamFactory public folder does not allow these verbs itself. If PUT, PATCH, or DELETE calls return HTTP 405, this is the step that was missed. The same change from an elevated command prompt:

%windir%\System32\inetsrv\appcmd.exe set config /section:requestFiltering /+verbs.[verb='PUT',allowed='true']
%windir%\System32\inetsrv\appcmd.exe set config /section:requestFiltering /+verbs.[verb='PATCH',allowed='true']
%windir%\System32\inetsrv\appcmd.exe set config /section:requestFiltering /+verbs.[verb='DELETE',allowed='true']

URL rewrite rules​

The DreamFactory repository ships a public\web.config that already contains the rewrite rules, so on a fresh clone there is usually nothing to import: once the URL Rewrite module is installed, http://localhost/ should answer with a 302 redirect to /dreamfactory/dist/index.html. Import the rules manually only if web.config is missing or has been replaced.

On the left side of the IIS management window, open the DreamFactory site, and select the URL Rewrite module. To import the URL rewrite rules:

  1. on the right side of the page, click Import Rules.
  2. Browse to the dreamfactory/public dir and open .htaccess.
  3. Click Import.
  4. If any of the imported rules have red Xs on them, select them and remove that specific rule until everything shows a green checkmark.
  5. Click Apply to complete the process.

Directory permissions​

IIS needs control over certian folders within the DreamFactory installation directory in order to function properly. Right click and select Properties on the following folders and give IIS_IUSRS full control over them. Additionally, be sure to unckeck the read only option, and apply all changes recursively if asked:

  • storage
  • bootstrap/cache
  • public
  • database — only when the system database is SQLite. DreamFactory 7 stores it as database\database.sqlite, and SQLite also needs to create journal files next to it. Without write access on this folder the UI loads but logging in fails with HTTP 500.
note

Sometimes these permisions don't set correctly with the properties window. If you are having permissions issues, we have seen good results by running these commands from the DreamFactory install directory:

icacls "bootstrap\cache" /grant "IIS_IUSRS:(OI)(CI)F" /T

icacls "storage" /grant "IIS_IUSRS:(OI)(CI)F" /T

icacls "database" /grant "IIS_IUSRS:(OI)(CI)F" /T

Accessing DreamFactory​

After completing the setup, you can navigate to the server's IP address or hostname to view the DreamFactory login screen on port 80. On a cloud instance, also open TCP port 80 in the provider's security group or firewall; the Windows Firewall rule for HTTP is enabled automatically when the IIS role is installed. At this stage, DreamFactory is operational. However, implementing SSL and creating a DNS entry for the server are some of the many additional configuration options at your disposal. Due to the extensive variety of configurations possible beyond this point, this guide does not cover them in detail. For more advanced IIS configuration, consult Microsoft's documentation as needed.

Post-Installation Configuration​

Scheduled task (required for DreamFactory scheduler)​

DreamFactory includes a built-in task scheduler for running scripts, reports, and maintenance on a schedule. For it to work, Windows Task Scheduler must call php artisan schedule:run every minute.

Open Task Scheduler and create a new task with the following settings:

  • Name: DreamFactory Scheduler
  • Trigger: Daily, repeat every 1 minute indefinitely
  • Action: Start a program
    • Program: C:\php\php.exe
    • Arguments: artisan schedule:run
    • Start in: C:\inetpub\wwwroot\dreamfactory
  • Run whether user is logged on or not: checked
  • Run with highest privileges: checked
note

Without this task, any scheduled scripts or workflows configured in the DreamFactory UI will never execute. There will be no error — they just won't run.

Node.js scripting on IIS — known issue​

If you are using Node.js scripted APIs with platform.api.post() (or PUT/PATCH) for internal loopback calls, you must explicitly pass a Content-Length header. Without it, Node.js uses chunked transfer encoding, which IIS/FastCGI does not handle correctly on loopback connections — the request hangs until FastCGI's request timeout fires.

This affects POST, PUT, and PATCH only. GET is not affected.

Add Content-Length to every platform.api.post() call:

const payload = JSON.stringify({ resource: [record] });

platform.api.post('myservice/_table/mytable', payload, {
'Content-Type': 'application/json',
'Content-Length': Buffer.byteLength(payload) // required on IIS
}, function(result, response) {
// handler
});

The same applies to platform.api.put() and platform.api.patch().

Scripting temp file cleanup​

DreamFactory writes temporary files to storage\scripting\ when executing Node.js scripts. These files are not automatically cleaned up. On a busy instance they will accumulate over time.

Add a second scheduled task to clean up files older than 1 day:

  • Name: DreamFactory Scripting Cleanup
  • Trigger: Daily at a low-traffic time (e.g. 2:00 AM)
  • Action: Start a program
    • Program: cmd.exe
    • Arguments: /c forfiles /p "C:\inetpub\wwwroot\dreamfactory\storage\scripting" /s /m *.js /d -1 /c "cmd /c del @path" 2>nul

Adding SSL​

For details on adding SSL, DreamFactory recommends using certbot. Follow the instructions from the provided link to help you through the process.

Installing Oracle Driver​

The process of installing Oracle drivers is a more manual process than with our Linux installers. To begin you will need to download 3 things:

  • The Oracle "Basic" Instant Client package from Oracle's Website (Example file instantclient-basic-windows.x64-23.7.0.25.01.zip)
  • The Oracle "SDK" Instant Client Package from Oracle's Website (Example file instantclient-sdk-windows.x64-23.7.0.25.01.zip)
  • The PHP oci8 extension (DLL) available at Pecl PHP Site By default, DreamFactory runs on PHP 8.3 so you will want the x64 NTS package for PHP 8.3 (version 3.4.0 is the first oci8 release with PHP 8.3 DLLs). If you are running DreamFactory using IIS as your webserver you must be using the non thread safe version of PHP.

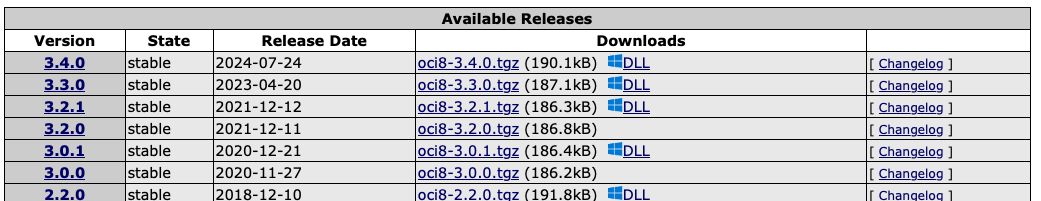

PECL website showing PHP oci8 extension DLL download options for Windows

  • Note you will want to click on the DLL button under downloads on the Pecl site for windows .dll files

  • Unless you have good reason, choose the appropriate DLLs with the NTS tag

  • Next you will create a folder where the Oracle drivers will be kept, for example C:\oracledrivers and extract the Oracle "Basic" Instant Client there. The files will be extracted into a subdirectory called instantclient_<version>. Example:

C:\oracledrivers\instantclient23_7

  • Next we will extract the "SDK" Instant Client to the same folder i.e. C:\oracledrivers. We want the SDK package to extract into the same subdirectory as in the previous step, not a new folder. Your driver folder should look like this:

Oracle Instant Client driver folder showing extracted Basic and SDK package files

  • and the subdirectory should look like:

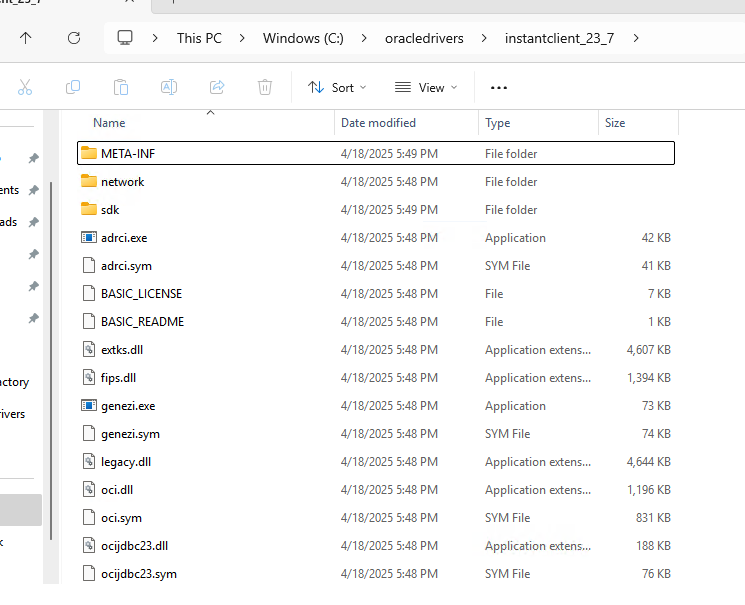

Oracle Instant Client subdirectory showing SDK folder and shared library files

  • Note that there is now an SDK folder inside.

Next, we need to add the full path of the Instant Client to the environment variables OCI_LIB64 and PATH. The quickest way to get to Environment Variables is to use the windows search bar and search for "environment" click on Environment Variables and then:

  1. Under System Variables, create OCI_LIB64 if it does not already exist. Set the value of OCI_LIB64 to the full path of the location of Instant Client.

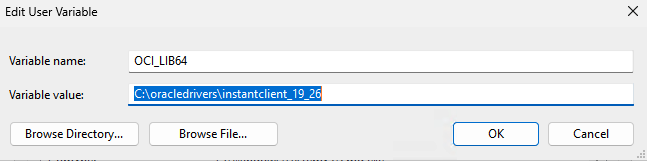

Windows Environment Variables dialog showing new OCI_LIB64 system variable being created OCI_LIB64 environment variable configured with full path to Oracle Instant Client directory

2.Under System Variables, edit PATH to include the same (C:\oracledrivers\instantclient_23_7)

When utilizing the IIS web server, it is essential to include a new variable PATH in your FastCGI environment.

For example, a new variable could be: %PATH%;C:\oracledrivers\instantclient_23_7.

The fastCGI path is located in the IIS Manager > Your Server > fastCGI Settings > Full Path > Edit > 3 dots next to collections

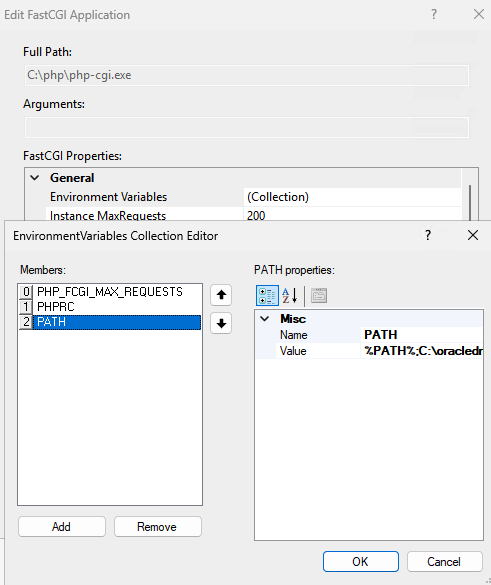

IIS FastCGI Settings dialog showing PATH environment variable collection for Oracle driver configuration

Almost there! Now, the last thing to do is to extract our PHP OCI8 extension package (it will be named along the lines of php_oci8-3.4.0-8.3-nts-vs16-x64.zip). The DLL inside is named php_oci8_19.dll (built against the Instant Client 19 interface, which newer clients still provide). Move it to the ext directory where PHP is located on your system (C:\php\ext if you followed this guide), add extension=php_oci8_19.dll to your php.ini file, and restart IIS. Verify with php -m (it should list oci8) and php -r "echo oci_client_version();", which prints the Instant Client version, 23.7.0.25.1 for the packages above. If oci8 is missing from php -m, the Instant Client folder is not on PATH for that process; the extension then fails to load with only a line in php_errors.log. Congratulations!

MCP Daemon​

If you plan to use the MCP Service, you must also run the background daemon server. This can be done using the provided PowerShell script:

cd {dreamfactory path}\vendor\dreamfactory\df-mcp-server\scripts
.\start-daemon-win.ps1

The script will automatically:

  • Install all required npm dependencies.
  • Start the daemon in the background using npx tsx.
  • Use default host 127.0.0.1 and port 8006, unless overridden via environment variables:
    • MCP_DAEMON_HOST — host to bind the daemon (default: 127.0.0.1)
    • MCP_DAEMON_PORT — port to bind the daemon (default: 8006)
    • NODE_ENV — Node environment (default: production)

After starting, you can verify the daemon is running by checking its health endpoint:

Invoke-WebRequest -Uri http://127.0.0.1:8006/health -UseBasicParsing
7.7.1: start-daemon-win.ps1 opens Notepad instead of starting the daemon

The script launches npx with Start-Process, which on a standard Node.js install resolves to the extension-less npx shell script and opens it in Notepad. The script still prints Daemon started, but nothing listens on port 8006. Until a fixed script ships, start the daemon with npx.cmd:

cd {dreamfactory path}\vendor\dreamfactory\df-mcp-server\daemon
npm install
Start-Process npx.cmd -ArgumentList "tsx src/server.ts" -WorkingDirectory (Get-Location) -WindowStyle Hidden

From 7.7.1 the system_mcp service type needs a second daemon, the System API MCP daemon. Its script builds the daemon on first run and listens on 127.0.0.1:3700:

cd {dreamfactory path}\vendor\dreamfactory\df-mcp-server\scripts
.\start-system-daemon-win.ps1
Invoke-WebRequest -Uri http://127.0.0.1:3700/health -UseBasicParsing

Use Node.js 22.23.4 or later for both daemons; earlier releases carry the Brotli decoder flaw CVE-2026-111497, which is not fixed in Node.js 20 and earlier.

Unattended installation​

Every step on this page has a command-line equivalent, which makes a fully scripted install possible. A reference PowerShell script, install-dreamfactory-win.ps1, lives alongside the Linux installers in the installers folder of the DreamFactory repository. It performs the whole procedure (IIS role, Git, VC++ runtime, URL Rewrite, PHP, SQL Server drivers, Composer, DreamFactory, IIS site, and a verification pass) in idempotent phases and was used to validate this guide on Windows Server 2025. It is a starting point for automation, not a supported installer; read it before running it.

Running the script​

  1. On a fresh server, open an elevated PowerShell prompt and download the script. A file saved through a browser carries the mark of the web, so unblock it or the default execution policy refuses to run it:
Set-ExecutionPolicy -Scope Process Bypass -Force
New-Item -ItemType Directory -Force C:\df-install | Out-Null
Invoke-WebRequest -UseBasicParsing -Uri https://raw.githubusercontent.com/dreamfactorysoftware/dreamfactory/master/installers/install-dreamfactory-win.ps1 -OutFile C:\df-install\install-dreamfactory-win.ps1
Unblock-File C:\df-install\install-dreamfactory-win.ps1
Get-Help C:\df-install\install-dreamfactory-win.ps1 -Full
  1. Open source install. -DfRef is the git tag or branch to check out; leave it off for the default branch. The system database defaults to SQLite; -DbConnection mysql, pgsql or sqlsrv together with the -Db* parameters uses an existing database server instead.
C:\df-install\install-dreamfactory-win.ps1 -DfRef 7.7.1 `
-AdminFirst Jane -AdminLast Doe -AdminEmail [email protected] -AdminPassword 'AtLeast16Characters' -AdminPhone 000-000-0000
  1. Commercial install. Put the composer.json, composer-dist.json and composer.lock from your commercial package in a folder and add these parameters to the command above. Add -GithubToken if Composer needs to authenticate to private repositories; the token reaches Composer only through the COMPOSER_AUTH environment variable.
  -ComposerFilesDir C:\df-install\commercial -LicenseKey YOUR_KEY

The script can also run through a cloud run-command agent such as AWS Systems Manager, which runs it as SYSTEM.

What to expect during the run​

  • Output stops for several minutes right after the == Prep line while Install-WindowsFeature adds the IIS role. Nothing is printed until it returns. The PHP download and composer install are the other long quiet stretches.
  • If the IIS features: line reports restart=True, reboot and run the script again. Finished phases are skipped.
  • 'crontab' is not recognized lines during the DreamFactory phase are the scheduler noise described under Troubleshooting.
  • A successful run ends with VERIFY OK. Everything is also written to C:\df-install\install.log. AdminPassword, LicenseKey and GithubToken are never echoed or logged.
  • Afterwards http://localhost/ redirects to the admin UI and the account you gave can log in.

Re-running a phase​

Each phase (Prep, Php, SqlServer, Composer, DreamFactory, Iis, Verify) writes a marker in C:\df-install\state\ and is skipped on the next run. -Phase <name> runs a single phase; delete its marker first to make it redo the work:

Remove-Item C:\df-install\state\Iis.done
C:\df-install\install-dreamfactory-win.ps1 -Phase Iis

Where the script deviates from the manual procedure above: it runs the site under the application pool identity rather than the Administrator account (see the note under Create DreamFactory site), registers the FastCGI handler with appcmd instead of PHP Manager, and verifies the result by requesting /, /api/v2/system/environment, logging in, and sending a PUT through IIS.

Troubleshooting Common Windows Installation Issues​

HTTP 403.14 when opening the site root​

Error: HTTP Error 403.14 - Forbidden for http://localhost/, while http://localhost/index.php works.

Cause: index.php is not in the site's default document list. The web.config shipped with DreamFactory does not add it.

Fix: See Default document.

500 with file_put_contents(...storage\framework/cache/...) in the response​

Error: Every request returns HTTP 500 with a JSON error mentioning storage\framework/cache/data/...: Failed to open stream.

Cause: PHP is running as the anonymous IUSR account, which has no write access to storage. This happens when the site uses pass-through authentication and Anonymous Authentication is left on its default user.

Fix: Either set Connect as to the local Administrator account as described above, or switch Anonymous Authentication to Application pool identity and grant IIS_IUSRS on the folders under Directory permissions.

UI loads but login returns 500 (SQLite system database)​

Cause: The database folder is read-only for the web server. SQLite needs to write both database.sqlite and its journal file.

Fix: icacls "database" /grant "IIS_IUSRS:(OI)(CI)F" /T from the DreamFactory installation directory, then iisreset.

df:setup says "The phone field is required." and creates no admin​

Cause: df:setup was run with --admin_email and --admin_password but without --admin_phone. The command reports the validation error and exits 0.

Fix: Re-run df:setup with --admin_phone added (any value such as 000-000-0000 works). The migrations and seeders are safe to re-run.

'crontab' is not recognized when running artisan commands​

Error: Every php artisan command (including df:env and df:setup) prints:

The system cannot find the path specified.
'crontab' is not recognized as an internal or external command,
operable program or batch file.

Cause: The df-scheduler package tries to install a Linux cron entry on every console run and has no Windows guard. The command it was asked to run still executes normally.

Fix: None needed. Ignore the lines; on Windows the scheduler is driven by the Task Scheduler job instead.

'Class not found' or autoload errors​

Error: Fatal error: Class 'DreamFactory\...' not found

Cause: Composer dependencies have not been installed, or the autoloader is out of date.

Fix: Run Composer install from the DreamFactory installation directory:

cd C:\inetpub\wwwroot\dreamfactory
composer install --no-dev --ignore-platform-reqs

If you have already run composer install and the error persists, try regenerating the autoloader:

composer dump-autoload

IIS 500.19 — Configuration error​

Error: HTTP Error 500.19 - The requested page cannot be accessed because the related configuration data for the page is invalid.

Cause: IIS cannot read the web.config file, usually due to a missing URL Rewrite module or incorrect file permissions on applicationHost.config.

Fix: Confirm the URL Rewrite module is installed (restart IIS after installation). If the module is installed, check that the IIS_IUSRS group has Read permissions on the C:\inetpub\wwwroot\dreamfactory\public directory.

PHP extension load failures — missing VC++ redistributable​

Error: PHP Startup: Unable to load dynamic library 'curl' or similar extension load error in PHP logs.

Cause: PHP extensions on Windows depend on the Visual C++ runtime. If the correct VC++ redistributable version is not installed, extensions silently fail to load. The same error for every extension, with (tried: C:\php\ext\...) in the message while PHP is installed elsewhere, means extension_dir is wrong: PHP's compiled-in default is C:\php\ext.

Fix: If the paths in the warning do not match your PHP folder, set extension_dir in php.ini (see Installing PHP). Otherwise download and install the Visual C++ 2015–2022 Redistributable (x64), then restart IIS:

iisreset

Verify extensions load correctly by running:

php -m

All extensions listed in php.ini should appear in the output. Missing extensions indicate a load failure — check the PHP error log at C:\php\logs\php_errors.log.

'php_sodium.dll not found' or sodium extension error​

Error: PHP Startup: Unable to load dynamic library 'sodium'

Cause: PHP cannot find or load ext\php_sodium.dll. The usual reasons are a wrong or unset extension_dir, a DLL from a different PHP build (a Thread-Safe or 32-bit extension under an NTS x64 php-cgi.exe), or a missing dependency such as libsodium.dll, which ships in the PHP zip root and must stay next to php-cgi.exe.

Fix: Confirm you downloaded the NTS x64 version of PHP from windows.php.net; the filename should contain nts (e.g., php-8.3.x-nts-Win32-vs16-x64.zip). Check that php.ini is the one IIS loads (compare phpinfo() with php --ini), that extension_dir points at C:\php\ext, and that the whole zip was extracted to C:\php, not just the ext folder.

White screen or blank page after IIS setup​

Error: Browser shows a blank white page with no error when accessing DreamFactory through IIS.

Cause: A PHP fatal error occurred and display_errors is Off, so nothing is rendered. The detail is in the PHP error log (C:\php\logs\php_errors.log if you used the php.ini block above) or in storage\logs\dreamfactory.log.

Fix: Read the log and fix the reported error (missing extension, unreadable .env, wrong permissions). If the log is empty, confirm log_errors=On and error_log are set and the log folder exists. Also confirm FastCGI Settings > PHP handler > Standard Error Mode is IgnoreAndReturn200, otherwise PHP warnings become IIS 500 pages.

php artisan commands fail with database errors during setup​

Error: SQLSTATE[HY000] [2002] No connection could be made or similar database error when running php artisan df:env.

Fix: For initial setup, select SQLite (option 0) when prompted by php artisan df:env. SQLite requires no external database server and eliminates network connectivity as a variable during troubleshooting. You can migrate to MySQL or PostgreSQL after confirming the base installation works.

Verifying the Installation​

Once IIS is configured and DreamFactory is running, verify the installation is functional:

1. Check the site root and the system environment endpoint

From the Windows server (or from a client that can reach the server), run:

curl.exe -sI http://localhost/
Invoke-WebRequest -Uri http://localhost/api/v2/system/environment -UseBasicParsing

The first request should return HTTP 302 with a Location of /dreamfactory/dist/index.html (a 403.14 means the default document is missing). curl.exe is built into Windows Server 2019 and later; it is used here because Windows PowerShell's Invoke-WebRequest turns a 302 with -MaximumRedirection 0 into the unhelpful error Operation is not valid due to the current state of the object. The second returns HTTP 200 with JSON containing DreamFactory version, PHP version, and platform information. A 500 error indicates a PHP or application configuration issue; check C:\inetpub\wwwroot\dreamfactory\storage\logs\dreamfactory.log for details.

1b. Confirm write verbs reach PHP

After logging in through the API, refresh the session with a PUT. An HTTP 405 here means the Request Filtering verbs step was skipped:

$login = Invoke-RestMethod -Method Post -Uri http://localhost/api/v2/system/admin/session -ContentType application/json `
-Body (@{ email = "[email protected]"; password = "YourPassword" } | ConvertTo-Json)
Invoke-WebRequest -Method Put -Uri http://localhost/api/v2/system/admin/session `
-Headers @{ "X-DreamFactory-Session-Token" = $login.session_token } -UseBasicParsing

2. Access the admin UI

Navigate to http://localhost (or the server's IP/hostname) in a browser. You should see the DreamFactory login screen. Log in using the admin credentials created during php artisan df:setup.

3. Confirm no red banner

After logging in, verify there is no red banner at the top of the admin UI. A red banner indicates a configuration issue — common causes include a missing or invalid license key, or a failed database connection. If a banner appears, check the .env file in the DreamFactory installation directory and confirm DF_LICENSE_KEY is set correctly (no curly braces).

4. Create the admin user via CLI (if setup was skipped)

If the login page reports an unknown user, no admin was created. Run df:setup again with the admin options; it only creates a user when none exists:

cd C:\inetpub\wwwroot\dreamfactory
php artisan df:setup --admin_first_name=First --admin_last_name=Last [email protected] --admin_password=AtLeast16Characters --admin_phone=000-000-0000 --no-interaction

If it answers Your instance is already setup., an admin exists and the password must be reset through the admin UI by another administrator. There is no df:create-admin-user command.

5. Make a test API call

Once logged in, create a test database service (SQLite works with no external dependency). Then verify the generated API responds correctly:

# Replace YOUR_API_KEY with a key generated in the admin UI
Invoke-WebRequest -Uri "http://localhost/api/v2/YOUR_SERVICE_NAME/_table" `
-Headers @{"X-DreamFactory-Api-Key" = "YOUR_API_KEY"} `
-UseBasicParsing

A 200 response with a JSON resource array confirms the API is working end-to-end.

For additional configuration options including SSL setup and DNS configuration, see the DreamFactory configuration guide.
